Advanced Trail Specific Settings — Elytra Contrails Wiki

This is where settings start to get a bit more technical so I split them up into a seperate section. Check Trail Specific Settings for the "normal" settings. Some of the example images here have other settings changed to more clearly demonstrate the one being shown.

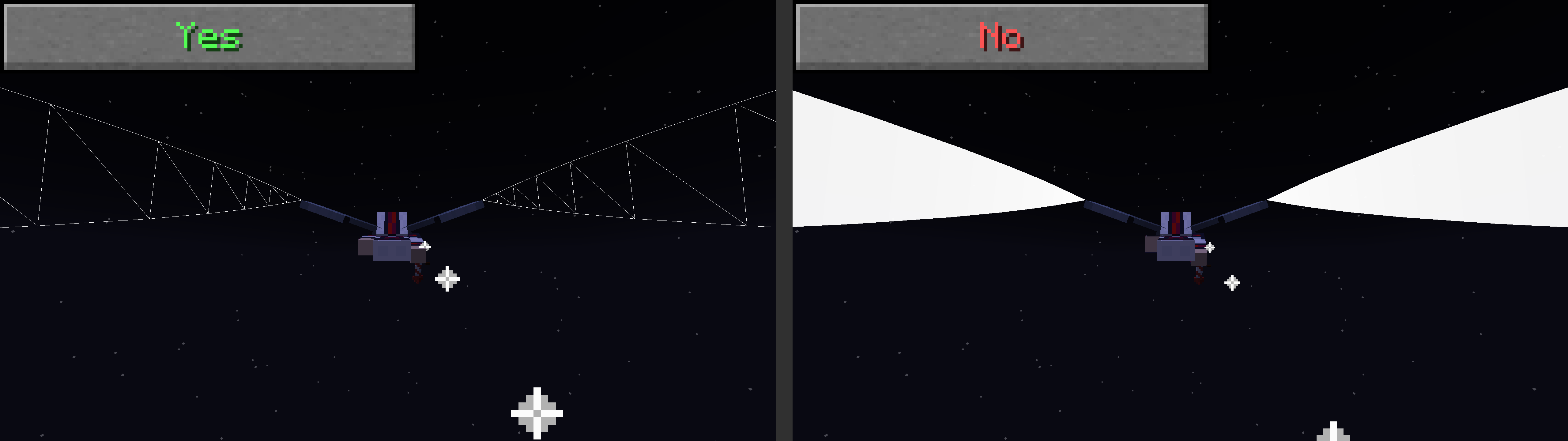

Wireframe Trails

Name in preset/config: "wireframeTrails", Default Value: false

Makes the trail render as a wireframe. This was initially added to debug a UV mapping issue (Thanks Flamgop) but we thought it looked cool so we kept it. These are 1 pixel thin so they might be hard to see!

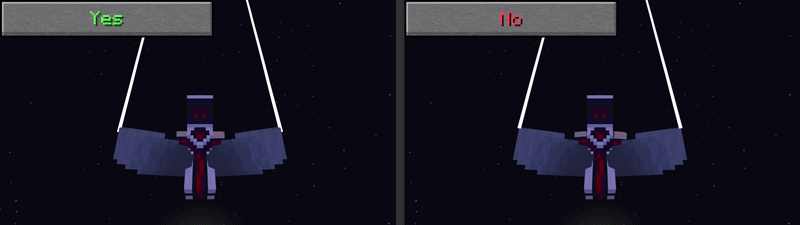

Dynamic Wingtip Position

Name in preset/config: "trailMovesWithElytraAngle", Default Value: true

This shifts where the trail is emitted from based on the elytra's spread. This exists because without it, the contrails would not be coming from the edge of the elytra in that angle! (This does not apply if there is a custom emitter with an elytra model. They can re-add this with EMF animations if they want)

Wingtip AOA Correction

Name in preset/config: "trailMovesWithAngleOfAttack", Default Value: true

This shifts the vertical position of the wingtip depending on your pitch relative to your velocity angle. This is here in order to make sure the trail doesn't go "through" the wing when rapidly pitching down. This is really hard to show, so the pictures aren't 1 to 1.

Ignore the wobbling of the trail, focus on where the trail is being emitted from:

Vertical Wingtip Position

Name in preset/config: "wingtipVerticalPosition", Default Value: 0.5

Requires "Wingtip AOA Correction" to be false!

This lets you define a specific vertical position for trails to emit from. Wingtip AOA Correction must be off for this to work! This is used in the "actionsandstuff" preset to account for the thicker trail start. It is also a useful setting if you are using certain capes that dont have the same wingtip as vanilla (For example the 15 year anniversary cape, its best so set this value to 1.0 for that one and disable AOA correction!). The default is 0.5 as to prevent the clipping that Wingtip AOA Correction tries to reduce.

Note for resource pack creators: the following wingtip position settings are different than the offsetX, offsetY, and offsetZ for non-EMF entity trails, as these have two very different scales and meanings.

0.0 is the bottom of the elytra, and 1.0 is the top of the elytra.

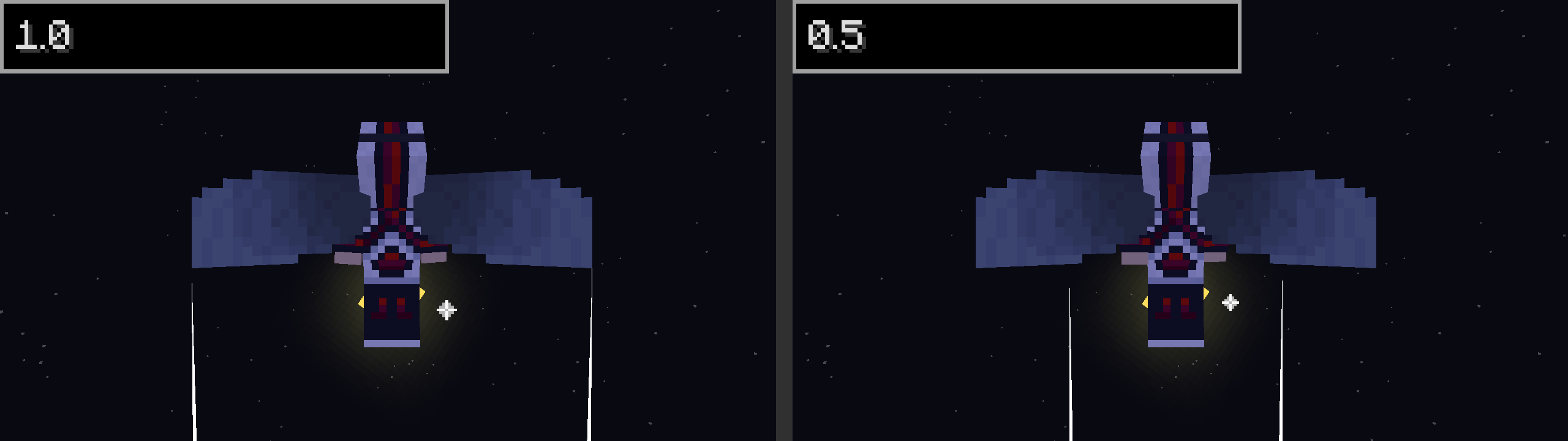

Horizontal Wingtip Position

Name in preset/config: "wingtipHorizontalPosition", Default Value: 1.0

This lets you define a specific horizontal position for trails to emit from

0.0 is the base of the elytra, and 1.0 is the end of the elytra.

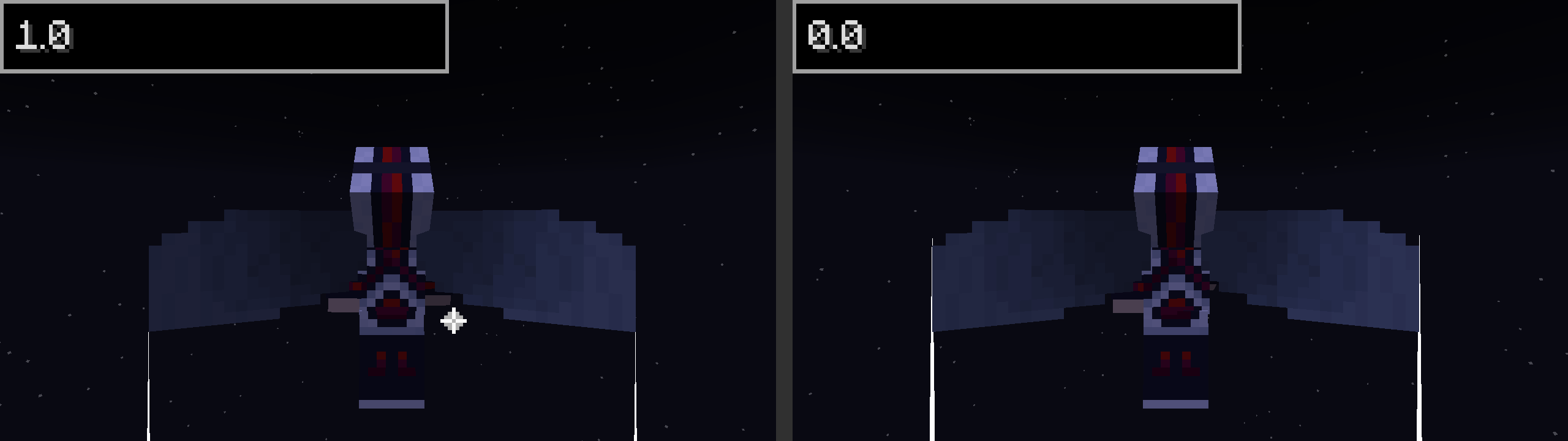

Depth Wingtip Position

Name in preset/config: "wingtipDepthPosition", Default Value: 1.0

Requires "Dynamic Wingtip Position" to be false!

This lets you define a specific depth position for trails to emit from

0.0 is the front of the elytra, and 1.0 is the back of the elytra.

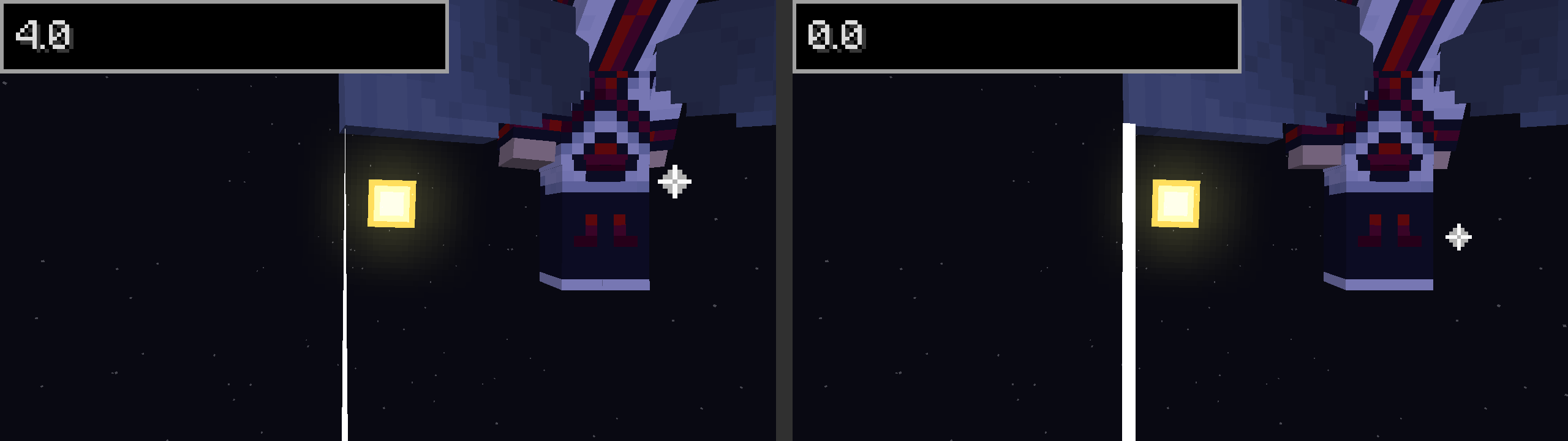

Thickness Start Ramp Distance

Name in preset/config: "startRampDistance", Default Value: 4.0

The distance along the trail in blocks that it takes for the trail to get from width 0 to maxWidth.

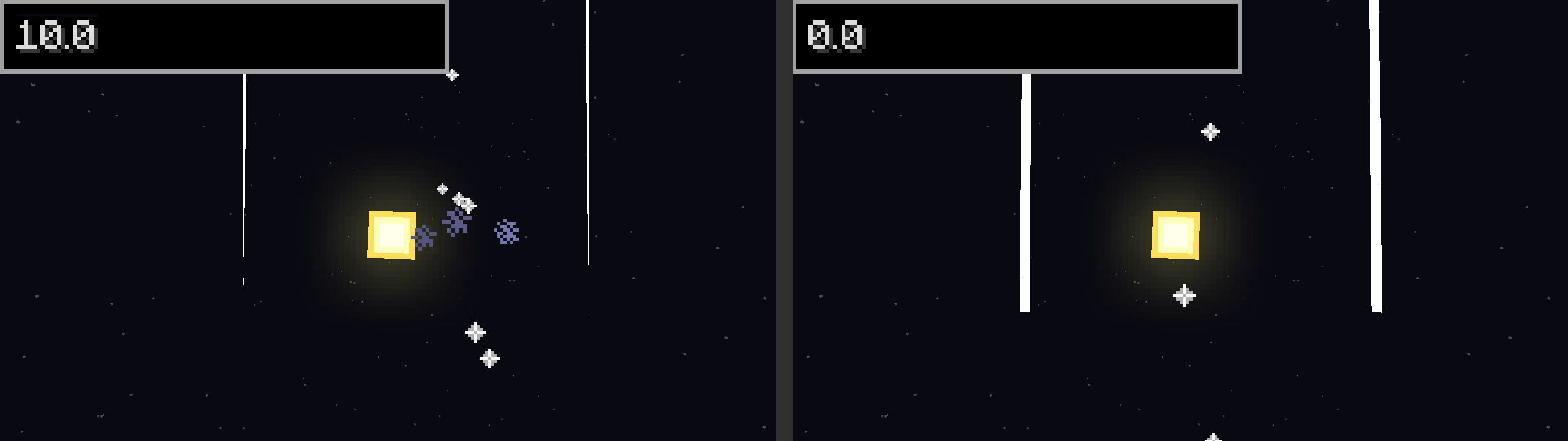

Thickness Start End Distance

Name in preset/config: "endRampDistance", Default Value: 10.0

The distance along the trail in blocks that it takes for the trail to go from maxWidth to 0 at the end of the trail

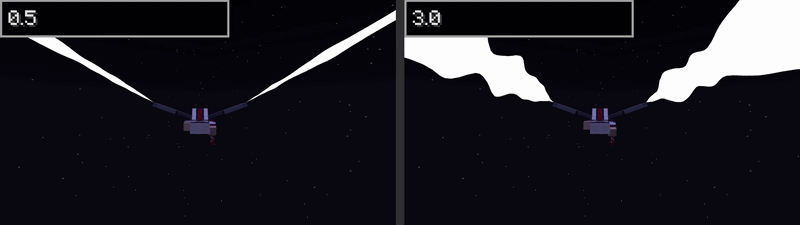

Width Variation Amount

Name in preset/config: "randomWidthVariation", Default Value: 0.5

The amplitude of the width variation. I might in the future make an option to change the frequency as well, but I think the frequency being any different would look strange (Image uses maxWidth 0.2)

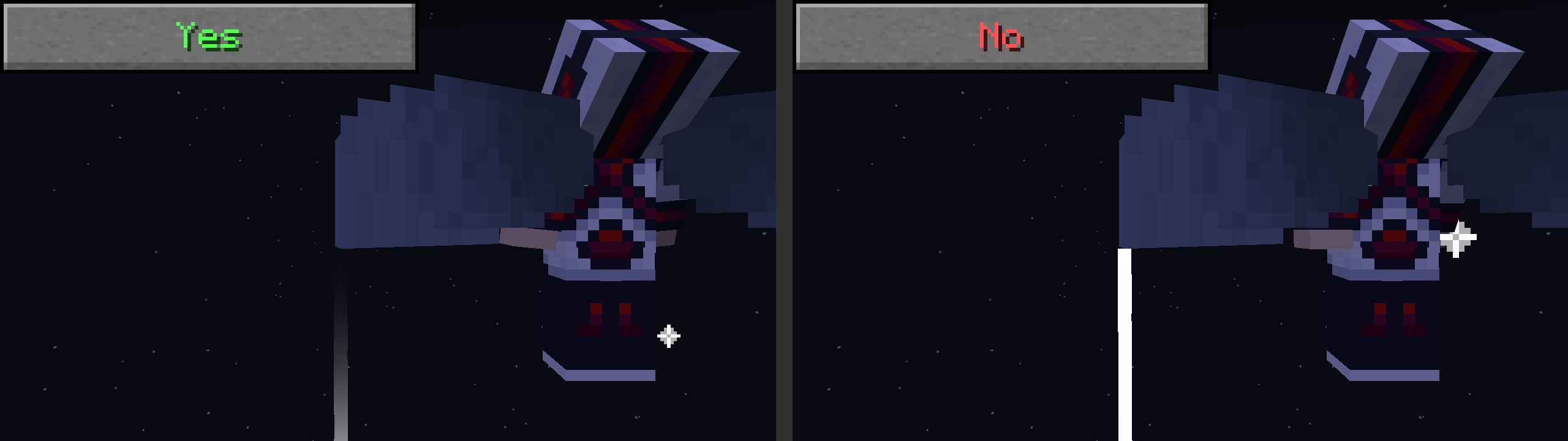

Trail Fade-in at Start

Name in preset/config: "fadeStart", Default Value: false

Requires "translucentTrails" to be true

Makes trail fade in at the start of the trail.

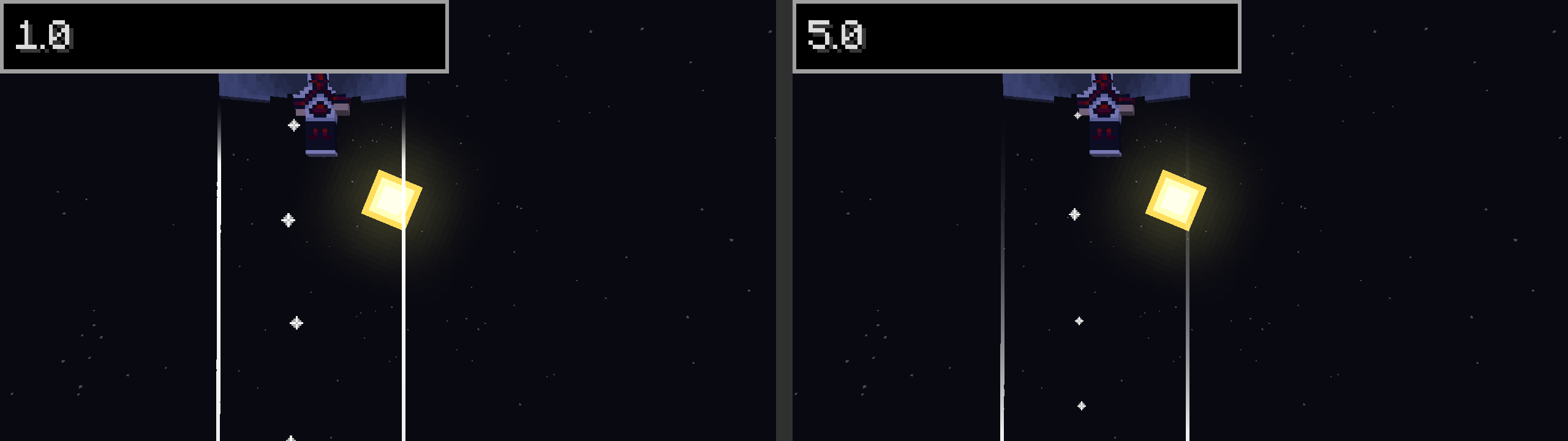

Fade-in Distance

Name in preset/config: "fadeStartDistance", Default Value: 1.0

Requires "fadeStart" to be true

REQUIRES "translucentTrails" to be true

Makes trail fade in at the start of the trail

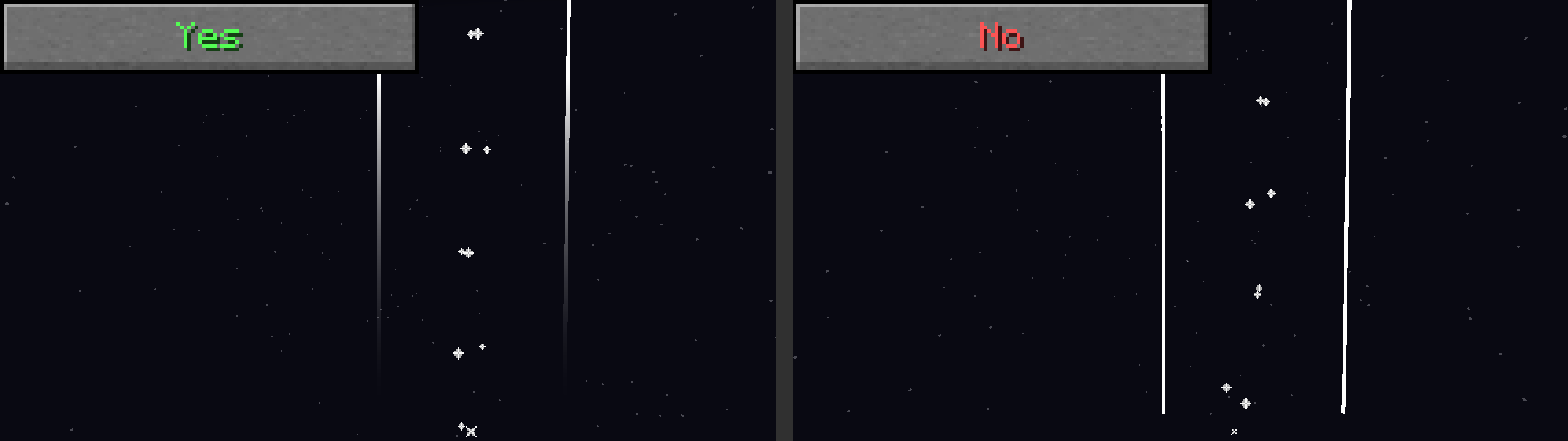

Trail Fade-out at End

Name in preset/config: "endDistanceFade", Default Value: false

REQUIRES "translucentTrails" to be true

Makes trail fade out at the end of the trail based on distance from the end.

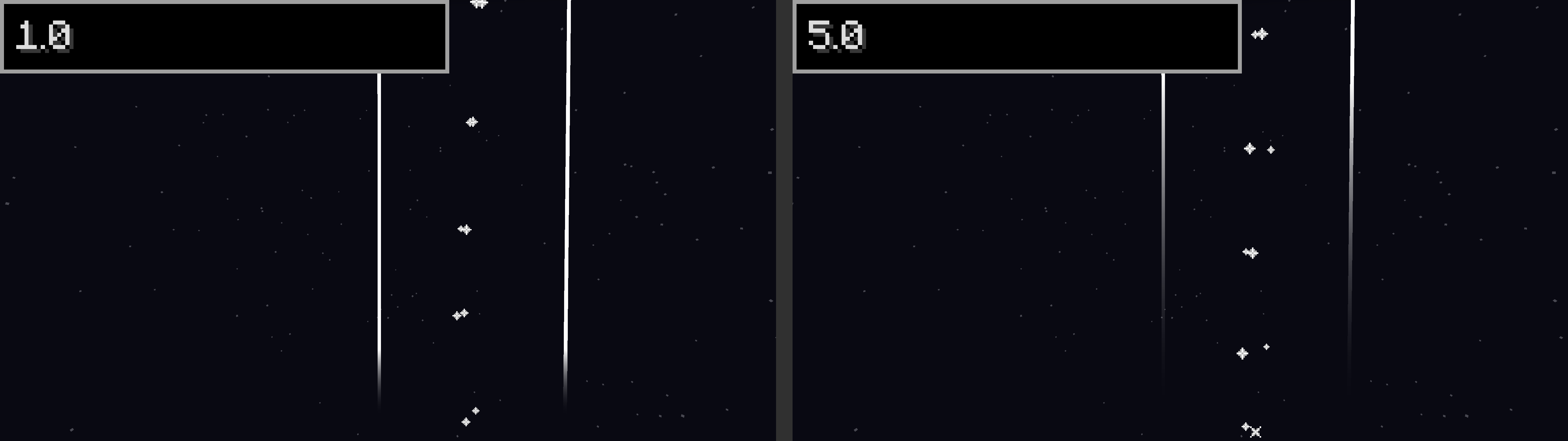

Fade-out Distance

Name in preset/config: "endDistanceFadeAmount", Default Value: 1.0

REQUIRES "endDistanceFade" to be true

REQUIRES "translucentTrails" to be true

Distance at which to fade the trail out.

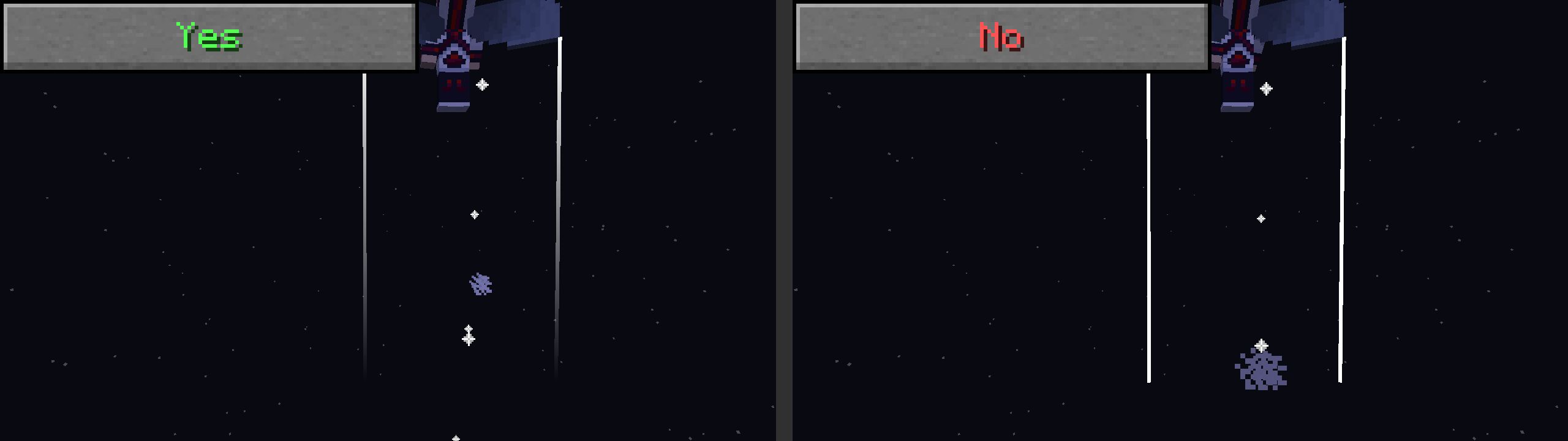

Trail Lifetime Fadout

Name in preset/config: "lifeTimeFade", Default Value: true

REQUIRES "translucentTrails" to be true

Whether or not the trail should fade out over time. This is different to endDistanceFade because this affects every trail point from start to finish. The opacity proportional to age divided by lifetime.

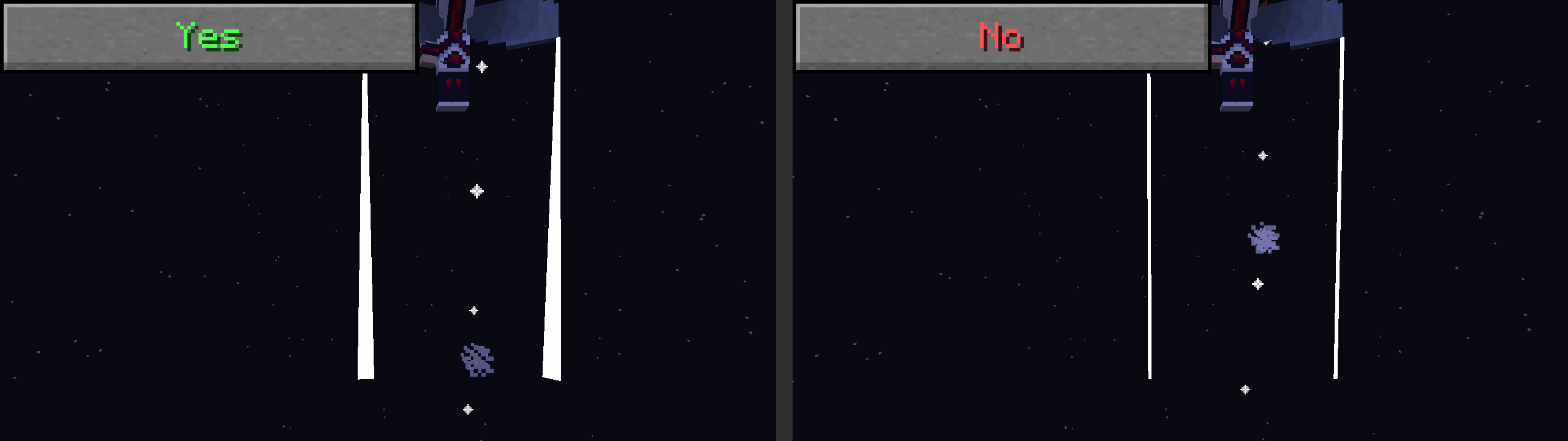

Width Changes Over Lifetime

Name in preset/config: "increaseWidthOverTime", Default Value: false

This makes the width change over the trail's lifetime. Can be useful for simulating the contrail "dissipating" if paired with lifetime fadeout

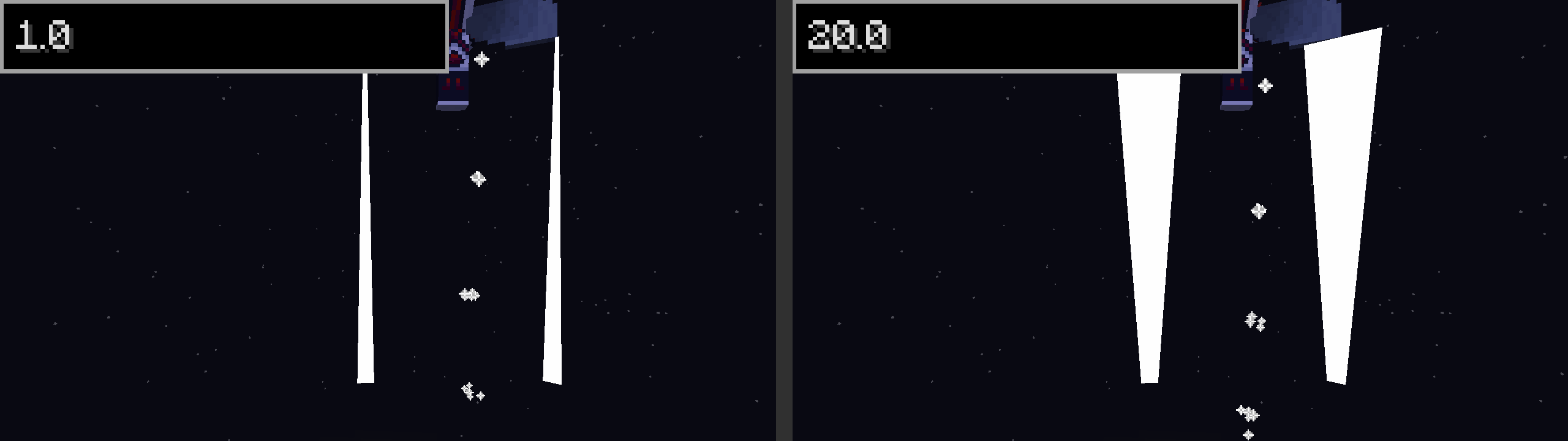

Width Start Multiplier

Name in preset/config: "startingWidthMultiplier", Default Value: 1.0

REQUIRES "increaseWidthOverTime" to be true

Width multiplier (to multiple by maxWidth) when the trail point's age is 0

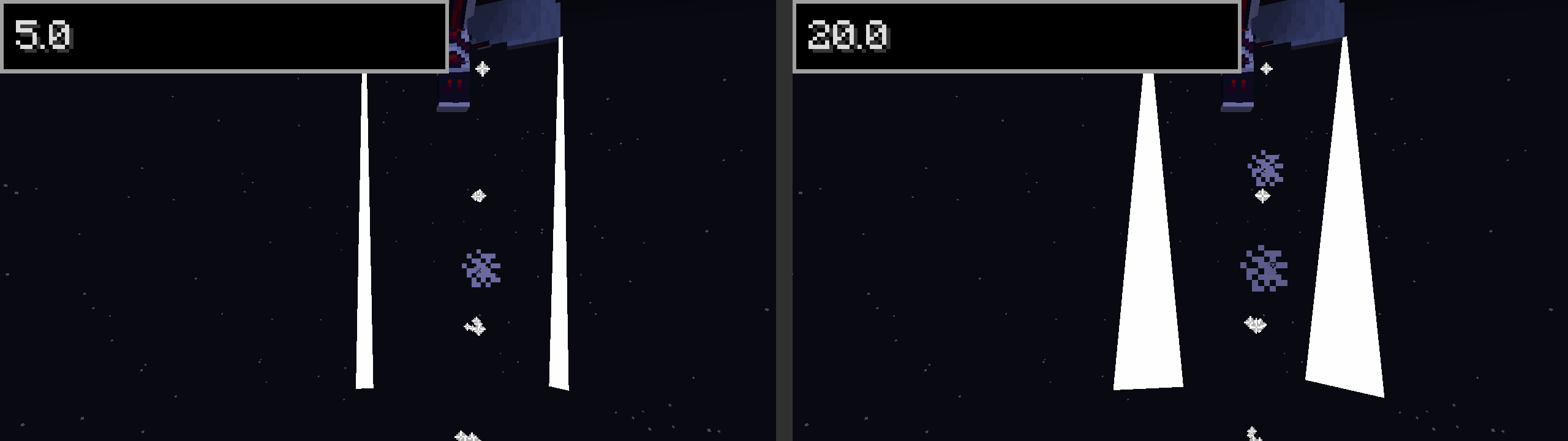

Width End Multiplier

Name in preset/config: "endingWidthMultiplier", Default Value: 5.0

REQUIRES "increaseWidthOverTime" to be true

Width multiplier (to multiple by maxWidth) when the trail point's age is at trailLifetime

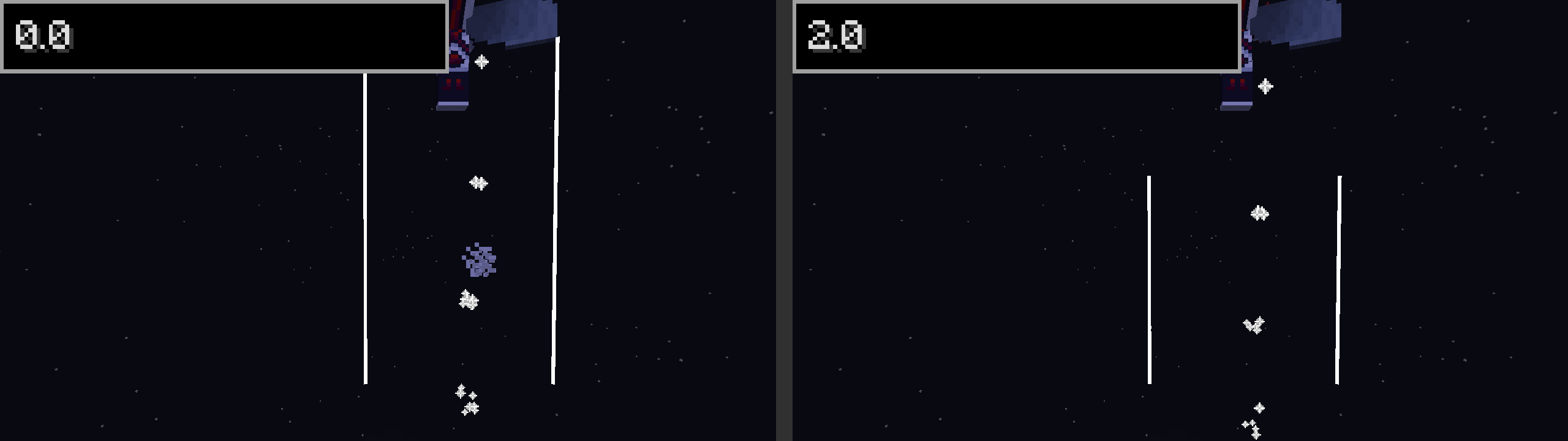

Distance Before Trail Starts

Name in preset/config: "distanceTillTrailStart", Default Value: 0.0

The distance between the trail's emitter and when the trail should start being visible.

Note: trail points are still 'aging' while they are not visible, so the longer this is the more faded they will be if lifeTimeFade is true.

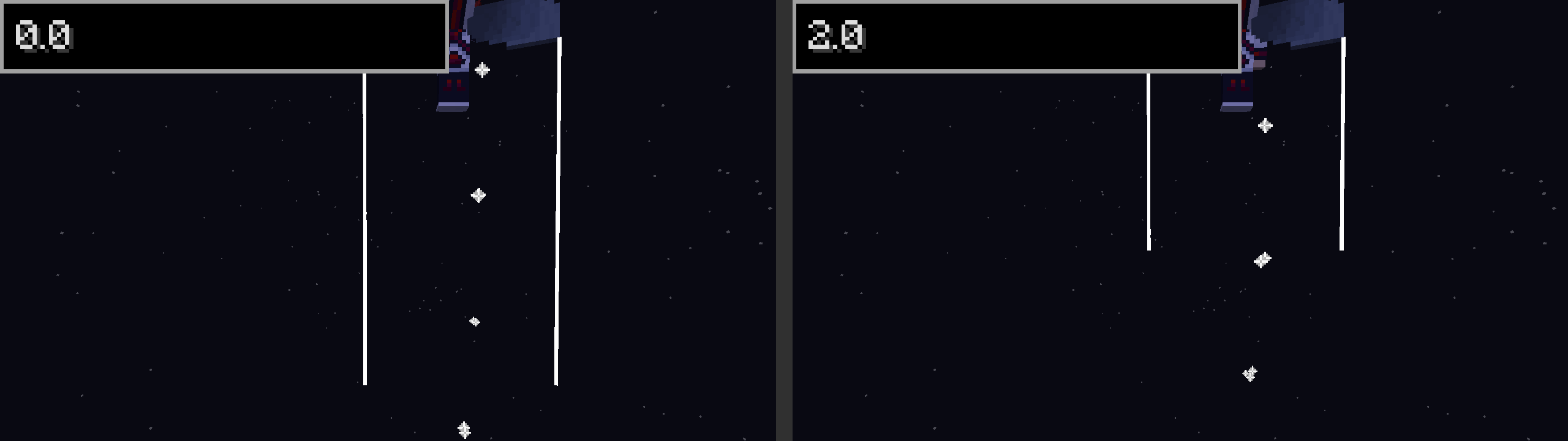

Distance to Subtract from End

Name in preset/config: "distanceTillTrailEnd", Default Value: 0.0

The distance between the trail's actual end and when the trail's perceived end should be

Note: trail points are still 'aging' while they are not visible, so the longer this is the less faded they will be when cut off if lifeTimeFade is true.

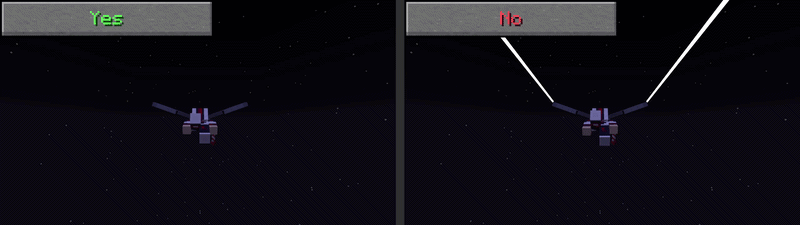

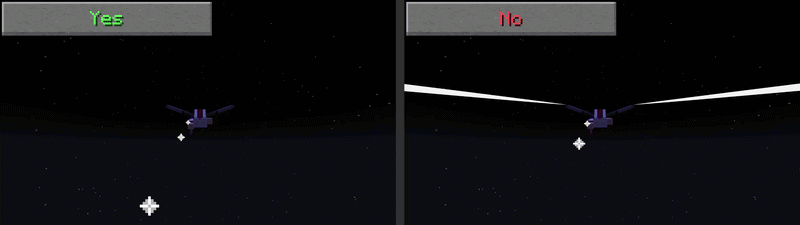

Speed Dependent Transparency

Name in preset/config: "speedBasedAlpha", Default Value: false

REQUIRES "translucentTrails" to be true

Whether the alpha of the trail should be dependent on the speed of the entity that emitted that trail point at the time of emission

Note: It might be a bit hard to wrap your head around what speedBasedAlpha and speedBasedWidth entail, so I made a desmos tool to try to visualize it better: Desmos Speed Based Width/Alpha Tool

0 Alpha Speed

Name in preset/config: "minAlphaSpeed", Default Value: 0.75

REQUIRES "speedBasedAlpha" to be true

REQUIRES "translucentTrails" to be true

The speed the entity should be going at for the alpha of the trail at that point to multiplied 0 (invisible).
